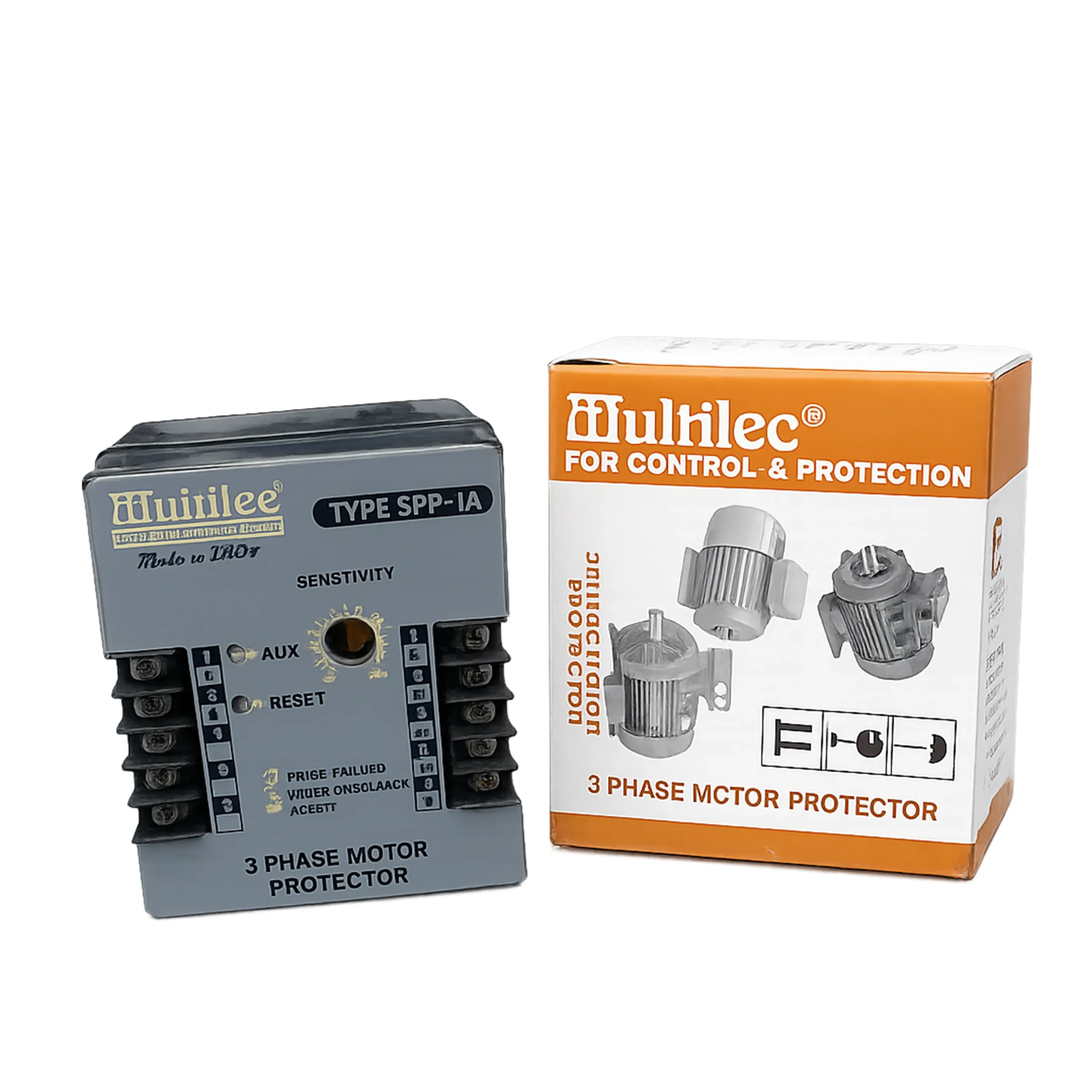

Three Phase Motor Protection Relay

Pakistan’s industrial sector — from the textile mills of Faisalabad and Sheikhupura to the manufacturing units of Karachi and Gujranwala — relies heavily on three-phase induction motors. These motors are the backbone of production, powering everything from looms and compressors to pumps and conveyors. The 3-Phase Single Phasing Preventer is an indispensable industrial safety relay designed to protect these motors from the most common and costly electrical faults in Pakistani industrial power supplies.



What Is a Single Phasing Preventer?



A single phasing preventer, also known as a phase failure relay or phase protection relay, is an industrial-grade monitoring device connected to the three-phase supply feeding a motor or control panel. It continuously measures all three phases — R, Y, and B — and instantly trips the motor contactor if any one of three dangerous conditions is detected: Phase Failure (one phase goes dead), Phase Unbalance (voltages across phases are not equal), or Phase Reversal (phases are connected in the wrong sequence, causing motors to run backwards). Without this protection, a motor running on two phases can overheat and burn out completely within minutes, resulting in costly rewinding or replacement.

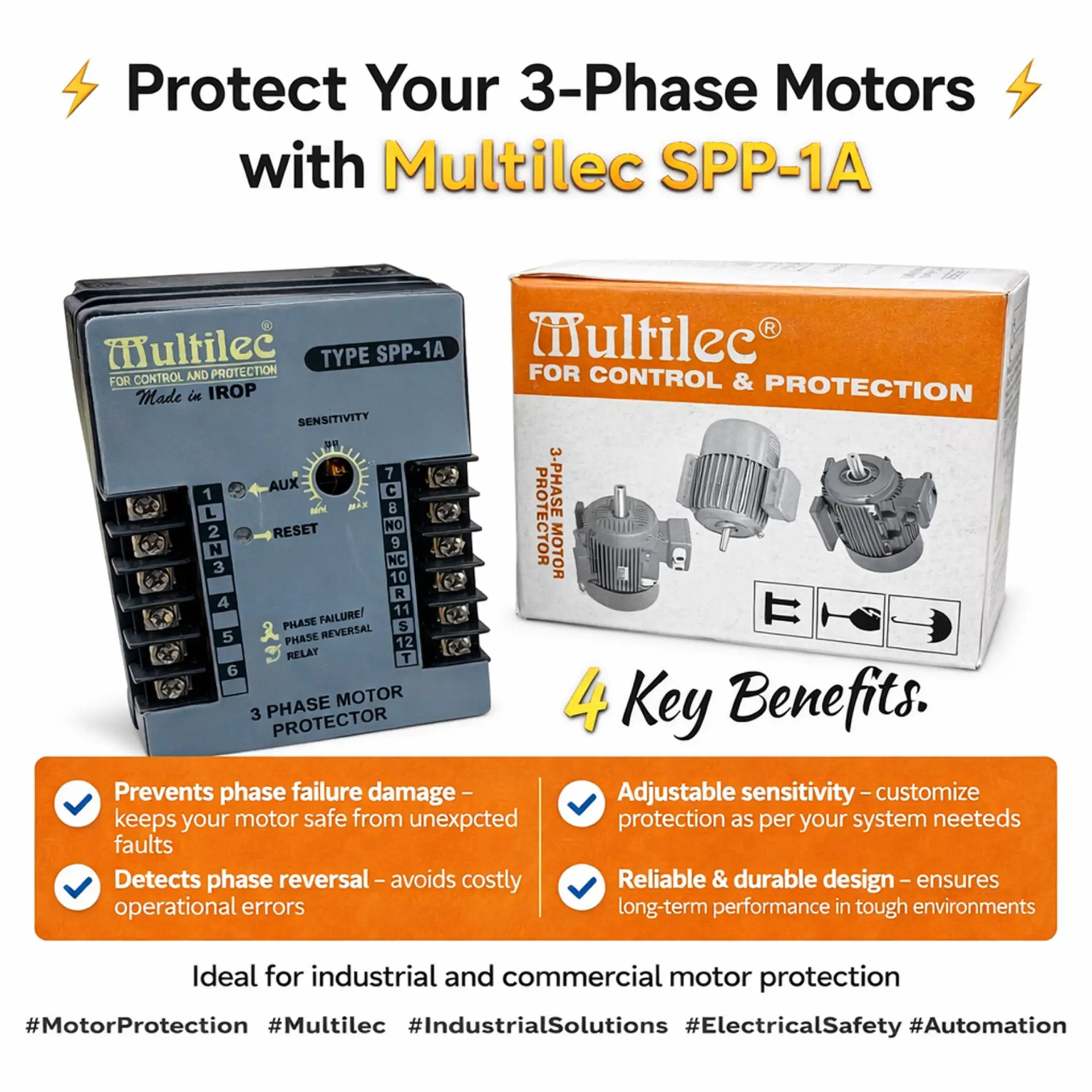

Key Features & Technical Specifications



This 3-phase protection relay offers complete phase failure detection with instantaneous trip response, phase unbalance sensing that detects differences greater than 8–10% between phases, phase reversal protection to prevent mechanical damage and accidents from reverse rotation, and a wide operating voltage range making it compatible with Pakistani industrial supply standards of 380V–415V three-phase. The relay output is suitable for controlling standard motor contactors and starter panels, and the compact DIN rail-mountable design fits neatly into any industrial MCC or distribution board.



Why Industrial Facilities in Pakistan Need Phase Protection



Pakistan’s industrial power supply is frequently subject to single phasing — a condition where one of the three phases supplied by WAPDA or LESCO drops out, often due to blown line fuses, broken conductors, or transformer faults. When a three-phase motor continues to run on only two phases, it draws excessive current, overheats rapidly, and suffers severe winding damage. A single motor burnout in a production line can cost tens of thousands of rupees in rewinding charges and cause hours of costly production downtime. Phase protection relays are mandatory safety equipment in any serious industrial facility.



Applications Across Pakistani Industries



This preventer is widely used in textile mills, garment factories, and embroidery units in Faisalabad, Lahore, and Sheikhupura, rice mills and flour mills in Punjab and Sindh, water treatment and pumping stations, CNC machine shops and fabrication workshops in Gujranwala and Sialkot, cold storage and refrigeration plants in Karachi and Lahore, and construction and material processing industries across Pakistan. Any facility running three-phase motors should have this device installed in every motor starter panel.



Local Availability & Industrial Supply



Available for industrial clients across Lahore, Karachi, Faisalabad, Gujranwala, Sialkot, Sheikhupura, Islamabad, Rawalpindi, Multan, and all other industrial cities of Pakistan. Bulk orders and installation support available for factories, contractors, and panel builders. Fast delivery and competitive wholesale pricing make this the preferred choice for electrical contractors and industrial maintenance teams.

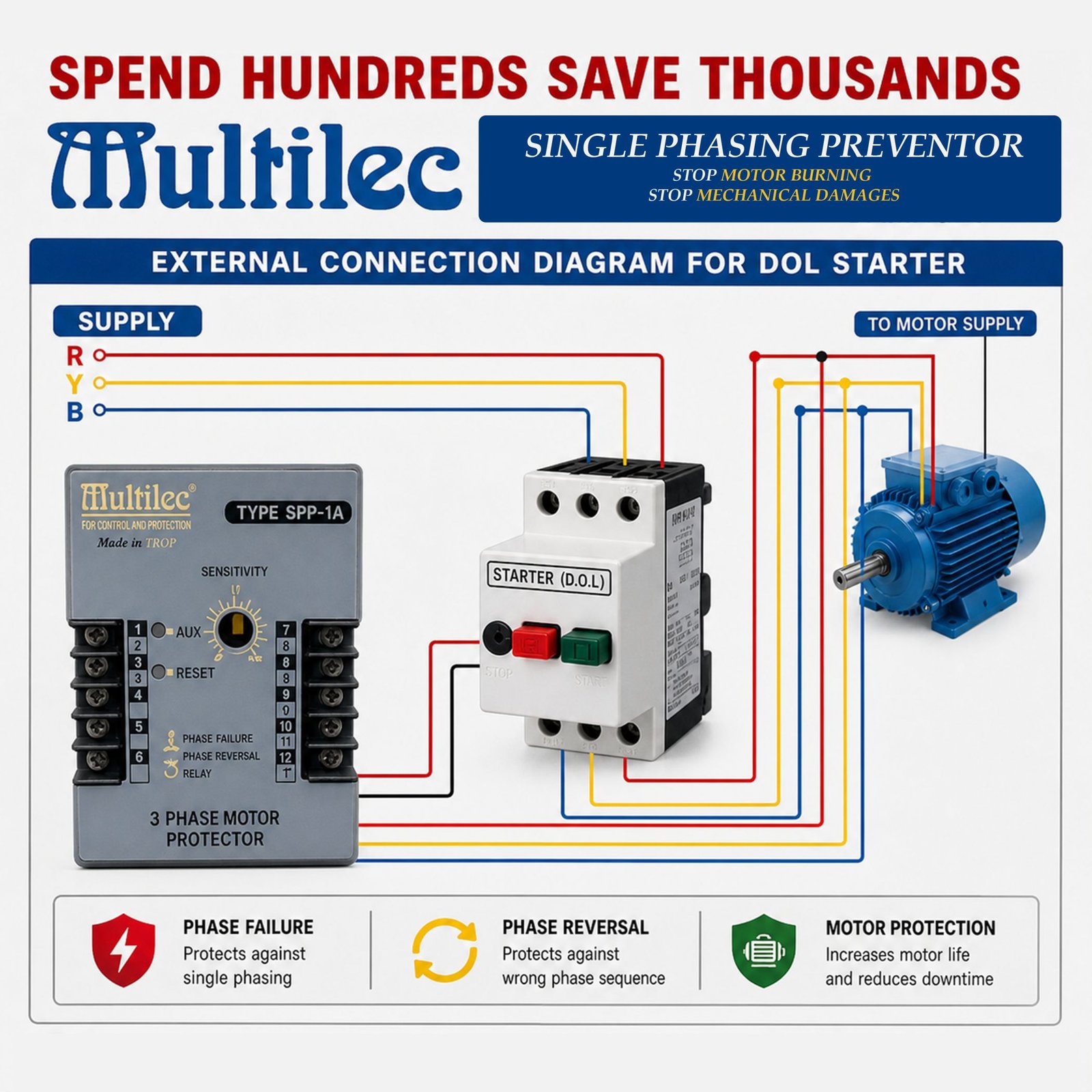

Installation in Control Panels



The 3-phase preventer is wired in series with the motor starter coil circuit. When the relay detects a fault condition, it opens its output contact, de-energizing the contactor and stopping the motor instantly. Reset can be manual or automatic depending on the model selected. Our technical team can provide wiring diagrams and application support for panel builders and industrial electricians across Pakistan.
